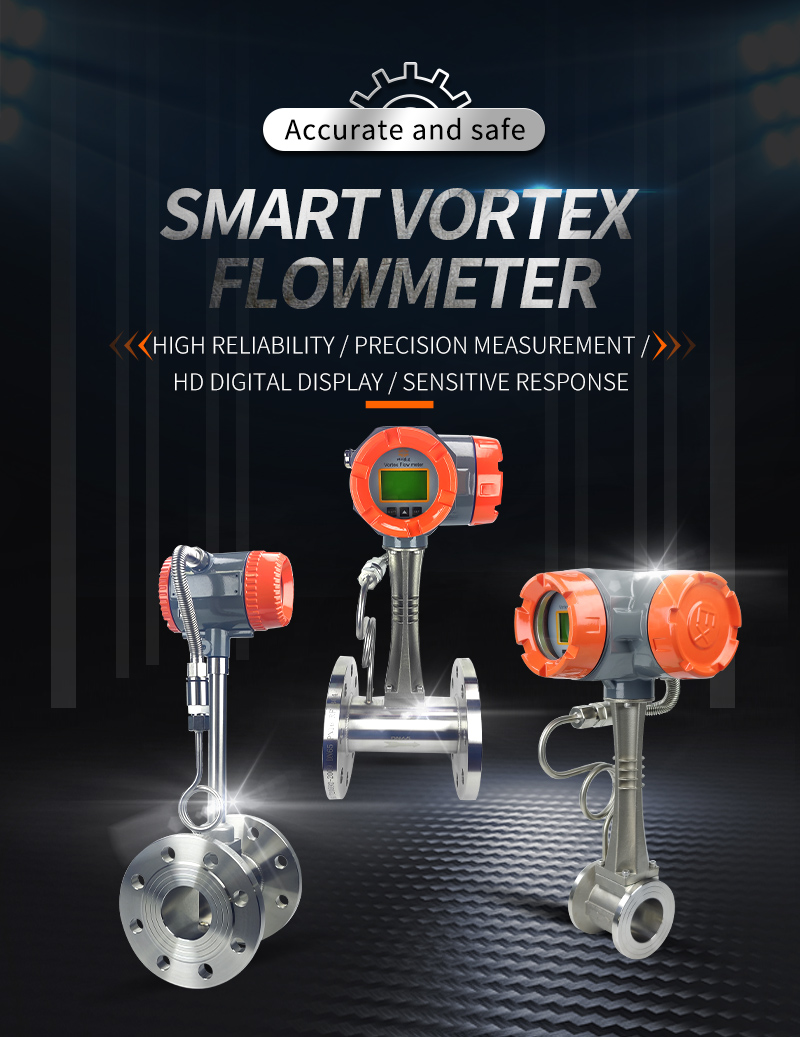

On the basis of Karmen principle, vortex flow meter combines robustness with high precision, manifold application for which KUNKE flow meters are well-known in the industry.
| Quantity: | |
|---|---|
KLUGB
KUNKEANDAO
KLUGB-DN15, DN25, DN 50~DN 300
Highlights:
1)No moving parts, anti-explosion and high reliable
2) With integrated temperature and pressure compensation
3) Low pressure loss
4) Vibration resistance and high temperature resistance up to 400degrees celsius
5) Suitable for DN15 toDN300
6) “L” shape head can be produced for easy assembly
7) Certificated in Safety instrument sysems
8) Simple structure and low maintenance
Application:
Vortex flow meter covers a broad range of applications, measurement and control of overheated steam, saturated steam, compressed air and general gas (oxygen, Nitrogen, Hydrogen, natural gas, cooking gas, water and liquid (gasoline, alcohol, benzene,etc).
| Vortex Flowmeter is based on karmen Vortex Principle. It is a new kind of stress detecting vortex flowmeter. It has the advantages of wide range rate, high accuracy, low pressure loss, good medium generality, pulse signal output proportional to flow, convenient to connect with computer etc. KLUGB Vortex Flow meter is a kind of velocity flowmeter. It is used for steam, gas and liquid measurement. The output is 4-20mA, RS485 and Hart. The temperature can high up to 400degrees celsius. |
| Executive standard | 《JB/T9249-2015》 Vortex flow meter |

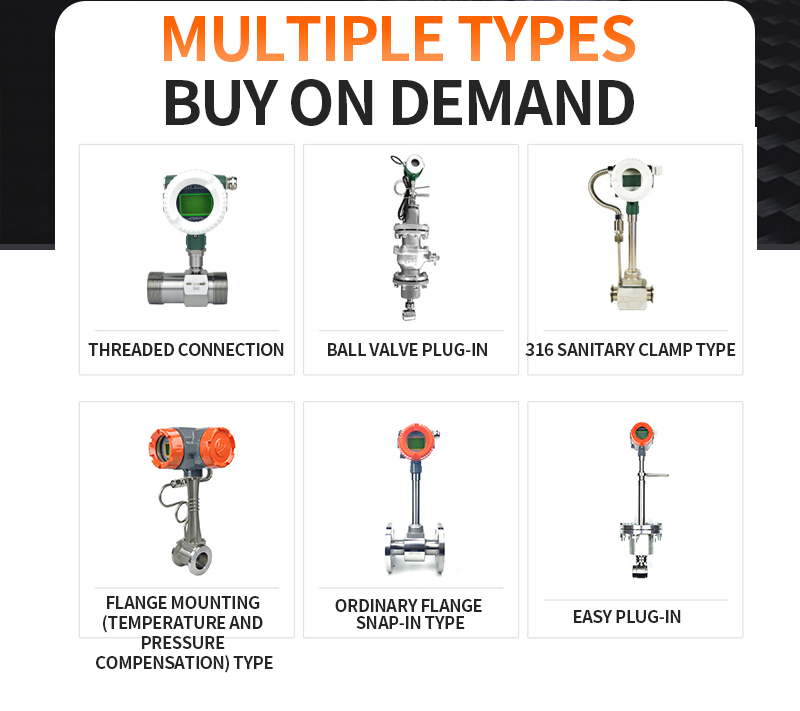

| Nominal diameter (mm) | 15、20、25，32，40，50，65，80，100，125，150，200，250，300，(300～1000 plug-in) |
| Nominal Pressure (MPa) | DN15-DN200 4.0(>4.0 Supply agreement)，DN250-DN300 1.6(>1.6Supply agreement) |
| Using Conditions | Operational temperature： Std：-40～100℃，KST-M：-40～250℃， KST-HC：-40～330℃；-40～400℃(special tailor-made) Environmental trmperature：-20℃～55℃，Relative humidity：5%～90%， |
| Material | Body：304(Other materials are supplied by agreement) Integrator housing：aluminium die casting |
| Allowable vibration acceleration | piezoelectric type:0.2g |
| Accuracy | ±1%R，±1.5%R；Plug-in：±2.5%R， |
| Rangeability | 1：6～1：30 |
| Supply voltage | sensor：DC +24V；transducer：DC +24V；battery-powered：3.6Vbattery |
| Output signal | Pluse output；4～20mA current, RS485(modbus- RTU agreement)，Internet of Things GPRS and so on |
| Pressure loss factor | JB/T9249 standard Cd≤2.4 |
| Explosive-proof | The Ann model: Ex ia Ⅱ CT4 |
| IP Grade | IP65 |
| Counduit entry | Inside threadM20*1.5or other |
| Applicable medium | Gas,liquids ,steam |
| Transmission distance | Three-wire pulse output：≤300m，Two-wire standard current output (4～20mA) ≤1500m；load resistance≤500Ω； RS485≤1200m. |
