1. Ultra-wide range ratio advocates water saving
2. Ultra-low pressure loss, saving water and electricity
3. Long measuring life can be used for multiple verification cycles
The hydraulic flat street technology of the impeller mechanism makes the impeller retreat and suspend in the middle state when the flow is a little larger, without shaft end wear, thus greatly improving the metering life of the water meter.
4. Low installation requirements to reduce early investment
Dual rectifier structure reduces the requirement of water meter installation straight pipe section to U5D3, shortening the surface well size.
5. High magnetic anti-theft strength of the movement
The whole cylindrical movement is fixed in the hole of the case after gold processing, the movement has good rigidity and reliability: wet liquid seal counter, better sensitivity, anti-magnetic anti-theft.
6. Horizontal swinging wing type water meter is suitable for all kinds of pipeline installation

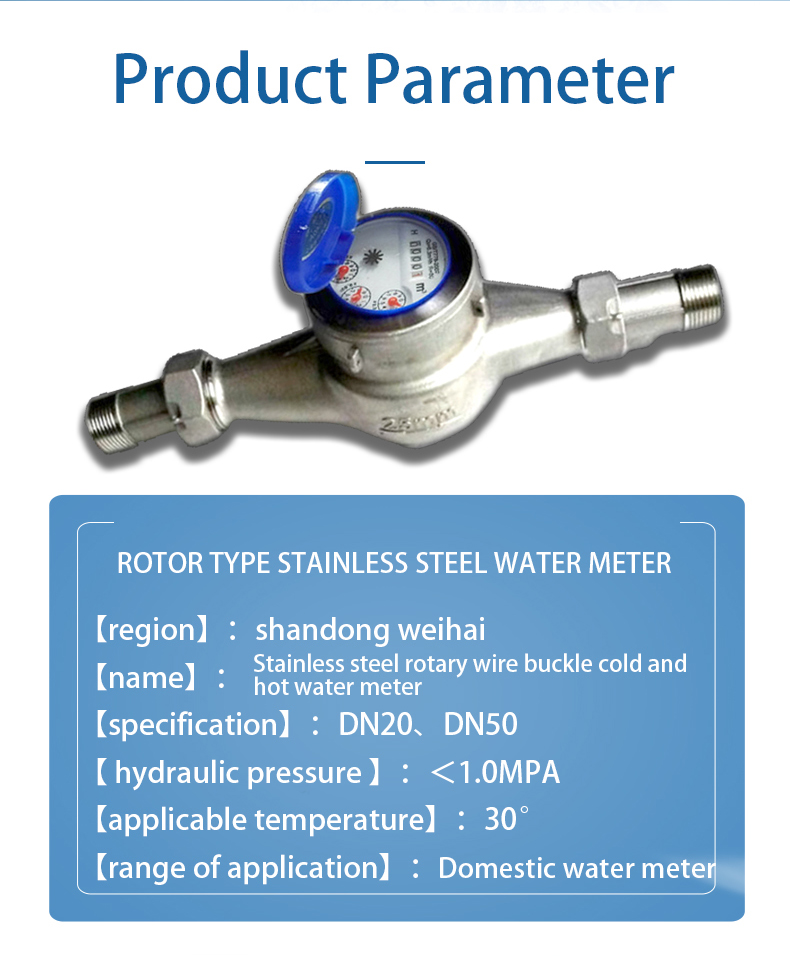

Technical Parameters
Model No. | Nominal Caliber | Class | Overload flow | Qmax flow | Transitional flow rate | Minimum flow | Lowest Reading | Highest reading |
mm | Q3/Q1 | m3/h | m3 | |||||

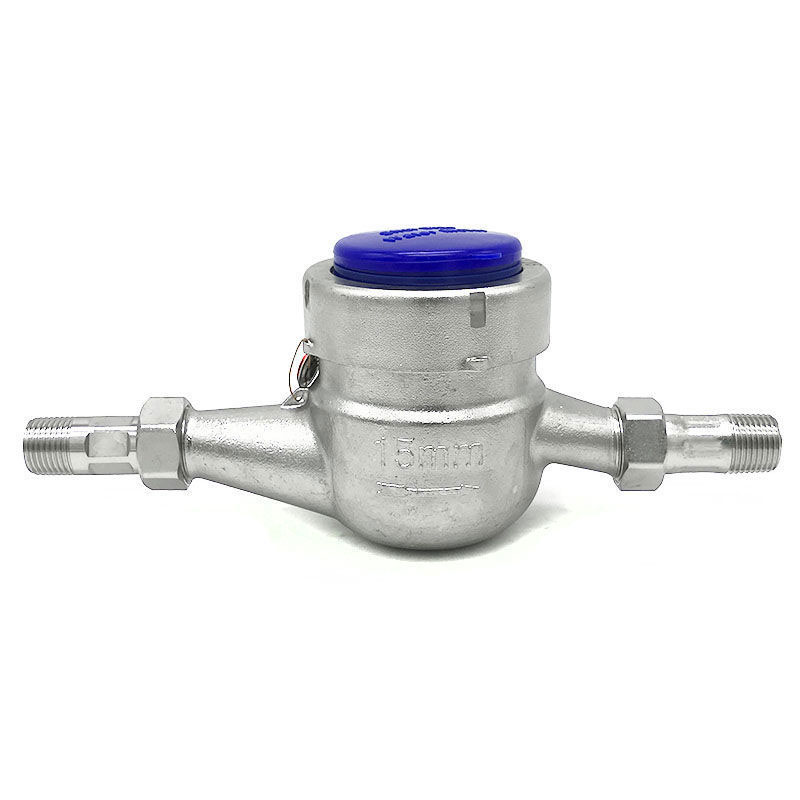

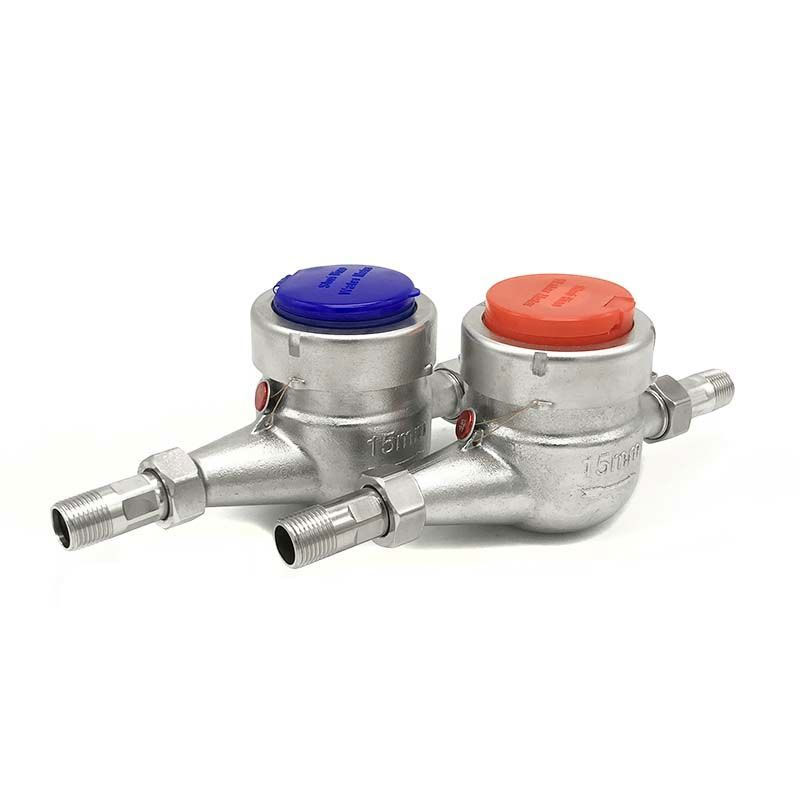

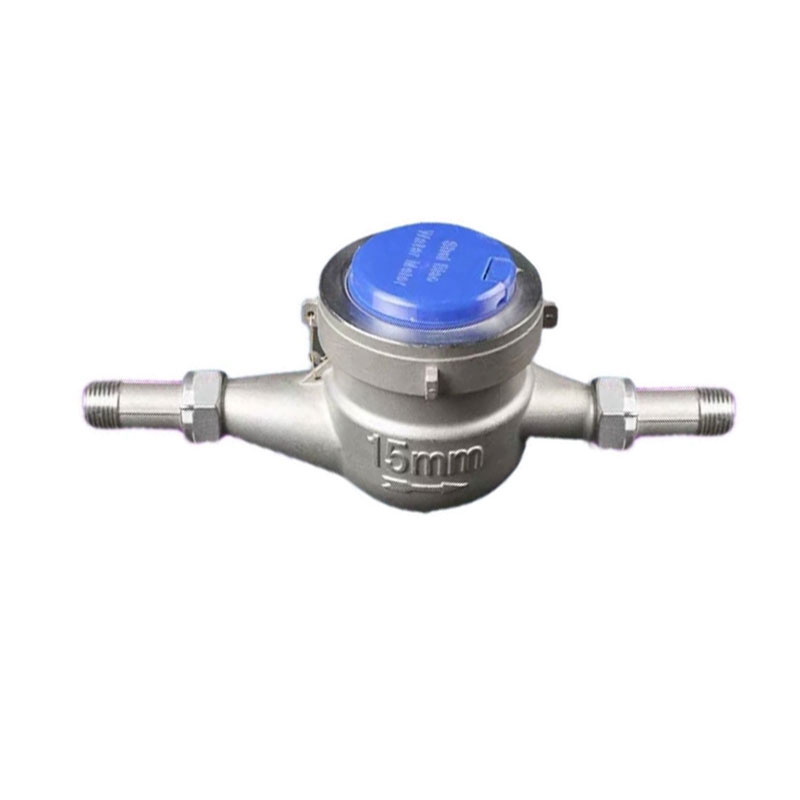

LXS-15mm | 15 | Class 2 | 3.1 | 2.5 | 0.05 | 0.031 | 0.0001 | 99999 |
LXS-20mm | 20 | 5 | 4 | 0.08 | 0.05 | |||
LXS-25mm | 25 | 7.9 | 6.3 | 0.126 | 0.079 | |||
LXS-32mm | 32 | 12.5 | 10 | 0.2 | 0.125 | |||
LXS-40mm | 40 | 20 | 16 | 0.32 | 0.2 | 0.001 | ||
LXS-50mm | 50 | 31 | 25 | 0.5 | 0.313 | |||
LXS-65mm | 65 | 31 | 25 | 0.5 | 0.313 | |||
