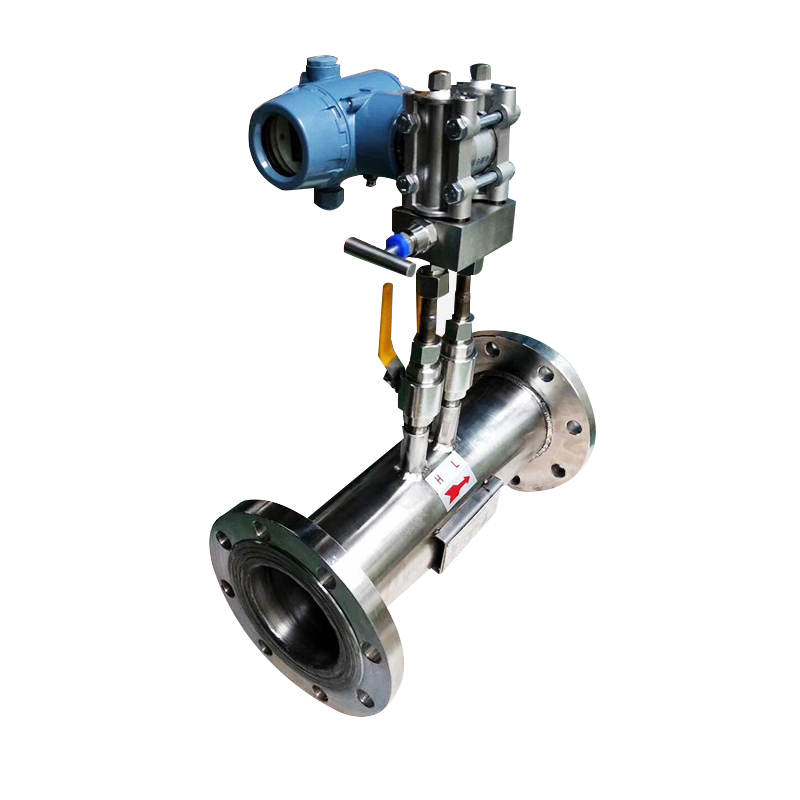

4-20mA V Cone LPG Flowmeter ISO V Cone Flowmeter

4-20mA V Cone LPG Flowmeter ISO V Cone Flowmeter offered by China manufacturer WEIHAI KUNKE. Buy 4-20mA V Cone LPG Flowmeter ISO V Cone Flowmeter directly with low price and high quality.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Kunkeandao factory sale tri-clamp 4-20mA V Cone lng lpg flow meter ISO

The V-cone flowmeter is a new type of differential pressure flow measurement device that uses a pointed cone installed coaxially in the measuring tube as the throttling element. It is based on the principle of Venturi tube measurement and integrates the advantages of classical Venturi tube, annular orifice plate, and wear-resistant orifice plate.

Product Paramenters

Nominal caliber		DN15-DN2000
Measuring medium		liquid, gas, steam
Medium temperature(ºC)		-200℃~+800℃
Pressure rating		1.0MPa~10.5MPa
Accuracy level		0.5, 1.0
Surface material		cone material is stainless steel, pipe, flange is carbon steel
Value range		0.45-0.85 Pressure gauge body
Range ratio		1:10
Aperture ratio		B=0.3-0.75
Repeatability		0.1

V-cone flowmeter differential pressure flowmeter
