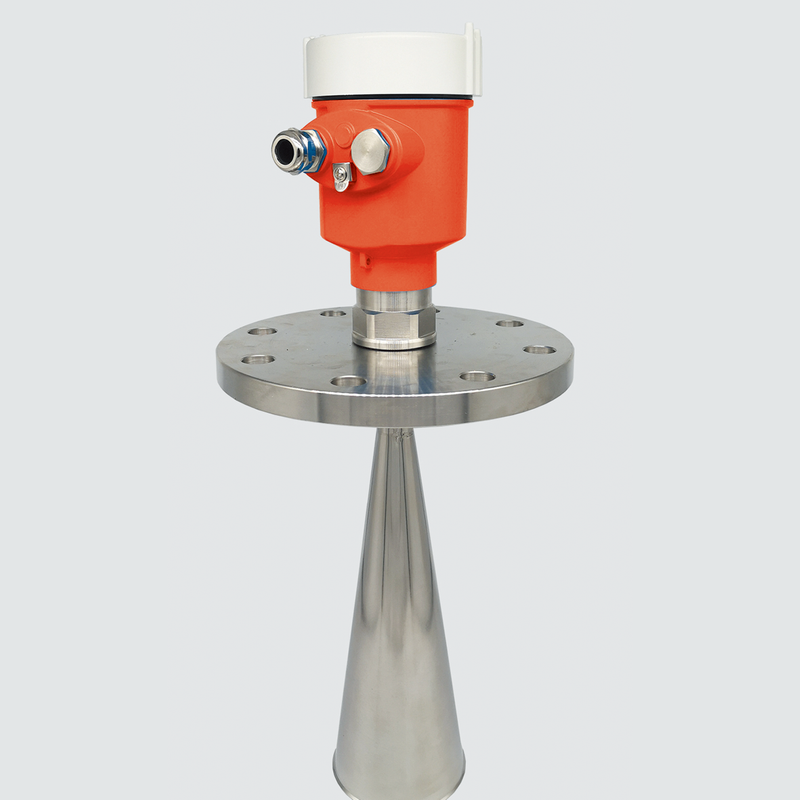

Guided Wave Radar Level Gauge Fuel Diesel Tank Level Gauge 4-20mA RS485

Advantage of radar level measurement is that no compensation is necessary for changes in density,
dielectric or conductivity of the fluid. Further changes in pressure, temperature and most
vapor space conditions have no impact on measurement accuracy; GWR is unaffected by high
turbulence or vibrations; and build-up has practically no effect, meaning no need for re-calibration.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Application:	Heat resistant, pressure resistant and slightly corrosive liquids
Measuring Range:	70 meters
Process Connection:	Thread, Flange
Medium Temperature:	-40~250ºC
Process Pressure:	-0.1~2.0MPa
Accuracy:	±15mm
Frequency Range:	26GHz
Explosion-proof	Exia II C T6 Ga
Protection Grade:	IP67
Signal Output:	4...20mA/HART( Two wire/FOUR wire ) RS485/Modbus

What kind of flow meter is a radar level meter How does the radar level gauge work There are several types of level gauges What is the relationship between the level gauge and the level gauge The working principle of radar level gauge
