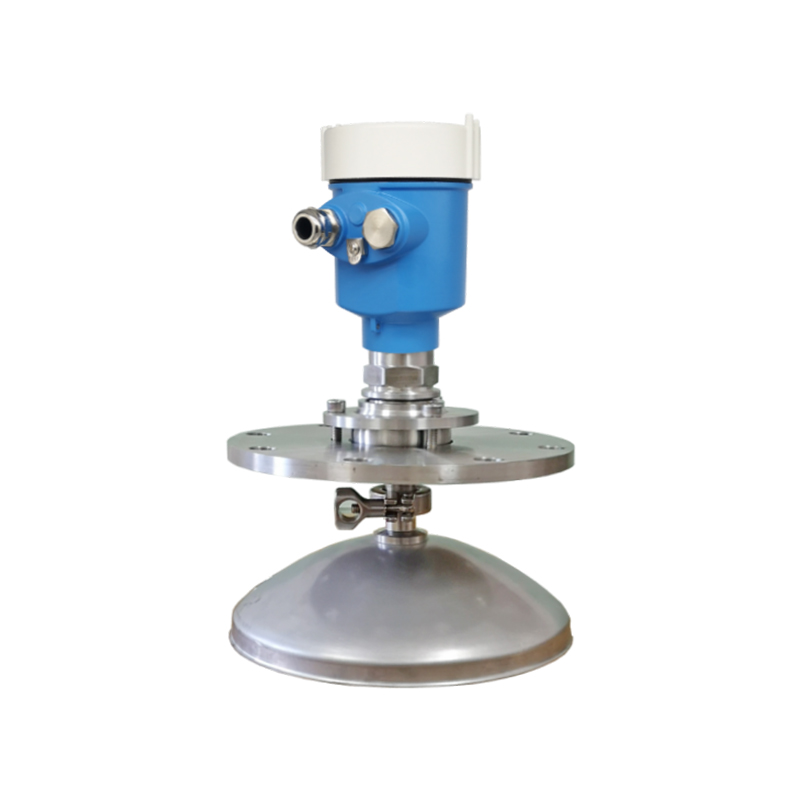

RS485 4-20mA Radar Level Transmitter Oil Gasoline Tank Level Gauge

This series sensors are 26G high-frequency radar-type level measuring instruments witha maximum distance of80meters. The antenna is further optimized. and the new and fast microprocessor canperform higher-speed signal analysis and processing, making the instrument available for complex measurement conditions such as reactors and solid silos.

Quantity:
Availability:





Inquire Add to Basket

Model:
KLR SERIES
Brand:
KUNKE ANDAO

Product Description

RS485 4-20mA Radar Level Transmitter Oil Gasoline Tank Level Gauge
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters.Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment

Technical Parameters

The outer shell	Stainless steel
Casing window	Polycarbonate
The ground terminal	Stainless steel
The power supply voltage	Standard(16 ~ 26) V DC
The cable parameters Cable entrance / plug Terminal	One M20xl.5 cable entrance One blind plug Conductor cross section 1.0mm²
The output signal	(4 ~ 20) mA/RS485
Communication protocol	HART
The maximum distance measurement	70m
Working temperature	(-40~100) ºC
Process temperature	(-40~250)ºC
Pressure	Max.4MPa
Protection grade	IP68
