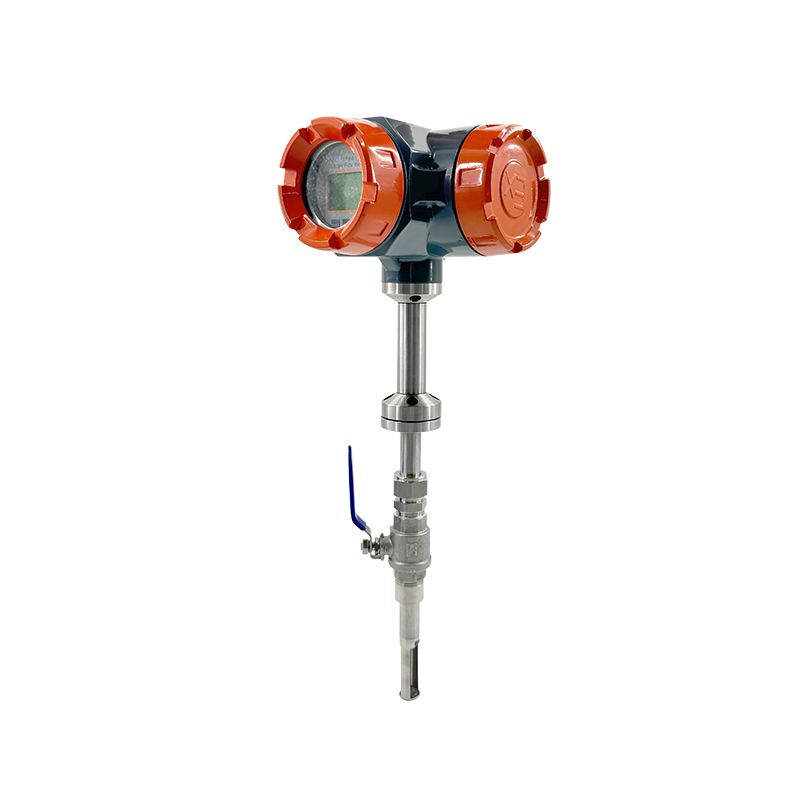

The inserted thermal gas mass flow meter is designed based on the principle of thermal diffusion, which keep the constant temperature difference to accurately measure the gas flow. The model features the advantages of high degree digitization, convenient installation and accurate measurement.
1)Temperature and pressure compensation is not necessary for gas flow measurement
2)No moving parts and reliable
3)Long service life
4)Easy assembly and low maintenance cost
5)RS-485 communication realize factory automation and integration
6)Suitable for pipe size DN50~DN12000
7)Resistance to high temperature
Specifications | |
Measuring Medium | Various gases (Except the acetylene) |
Pipe Size | DN10~DN4000mm |
Velocity | 0.1~100 Nm/s |
Accuracy | ±1.5% |
Working Temperature | Sensor: -40℃~+220℃ Transmitter: -20℃~+45℃ |
Insertion Sensor: medium pressure≤ 1.6MPa Flanged Sensor: medium pressure≤ 1.6MPa Special pressure please contact us | |
Power Supply | Compact type: 24VDC or 220VAC, Power consumption ≤18W Remote type: 220VAC, Power consumption ≥19W |
Response Time | 1s |
Output | 4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 (optoelectronic isolation) and HART |
Alarm Output | 1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC |

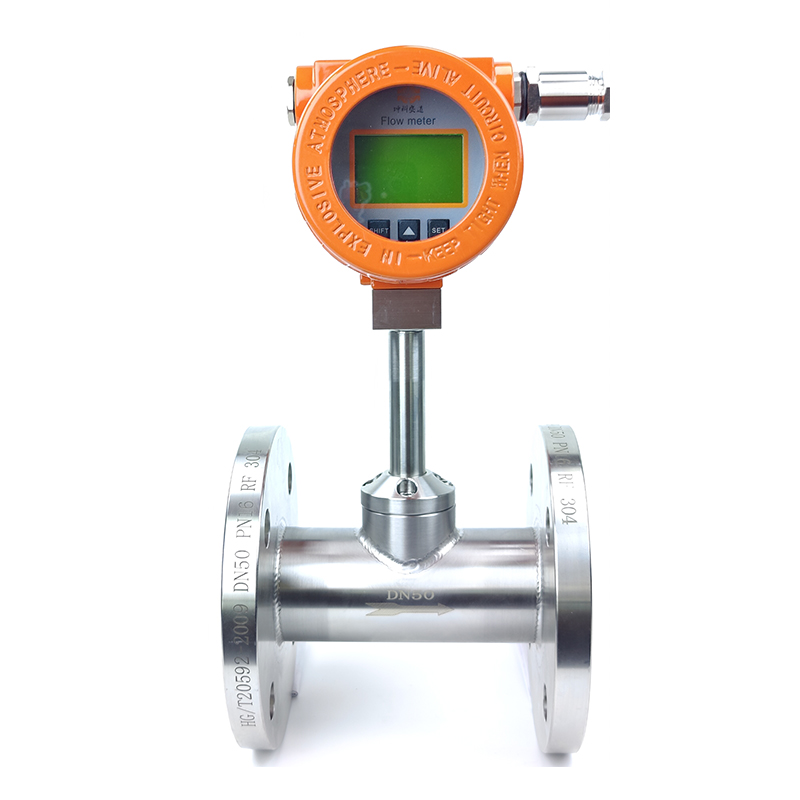

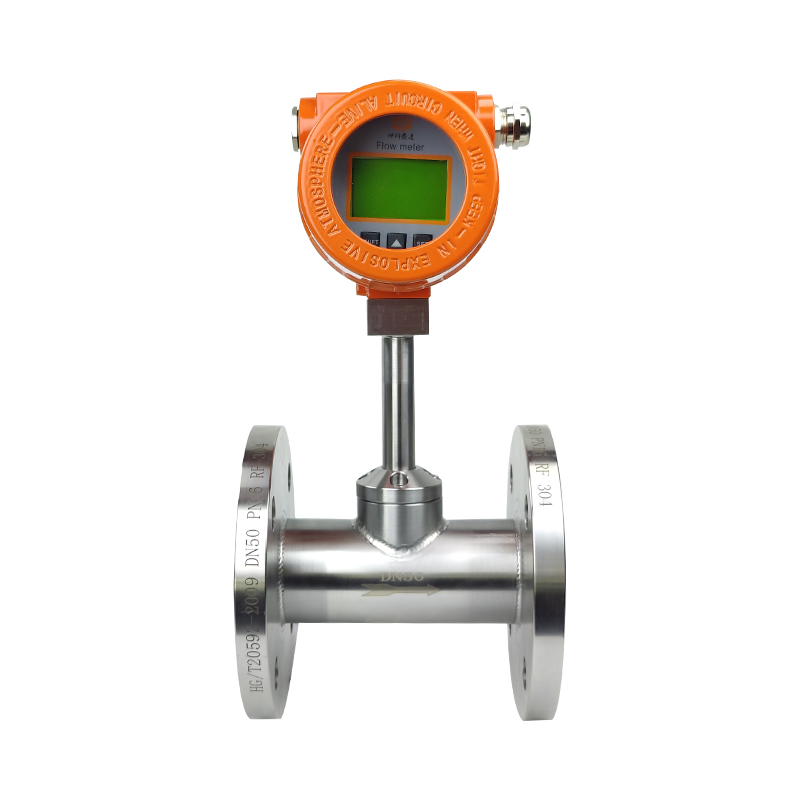

Sensor Type | Standard Insertion, Hot-tapped Insertion and Flanged |
Construction | Compact and Remote |
Pipe Material | Carbon steel, stainless steel, plastic, etc |
Display | Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc. |
Protection Class | IP65 |
Sensor Housing Material | Stainless steel (316) |
1.Q:WhatistheMOQofyourproducts
A:Onepieceisok.Wesupportonepiecesampleforfieldtest.
2.Q:Whatareyourtermsofpayment?
A:WesupportT/T,L/C,WesternUnion,Paypal.Fullpaymentneedpaidwhentotalamountless
than$5,000.TheamountmorethanUSD$5,000,30%advancepaymentshouldbepaid,70%
balancebeforeshipment.
3.Q:Howdoyouofferprice?
A:EXW,FOB,CIF,DDUorDDPareok.
4.Q:Areyoumanufacturerortradecompany?
A:Wearemanufacturer,specializeinflowinstrumentproductionfor18years.
5.Q:Howareyourproductspacked?
A:Papercartons,woodencartonsareavailableforyourchoice.
6.Q:Howdoyoucontrolquality?
A:Wecalibrateforeachpiecebeforeshipment.Calibrationdatascanbeprovidedalongwith
shipment.What’smore,EachpiecewillbeinspectedbyQAdepartment.
7.Q:Howtoplaceanorder?
A:On-lineorderoroff lineorderisok.Youcanplacecreditassuranceorderhereandpayhere,
we willarrangeshipmentasagreeddate.
