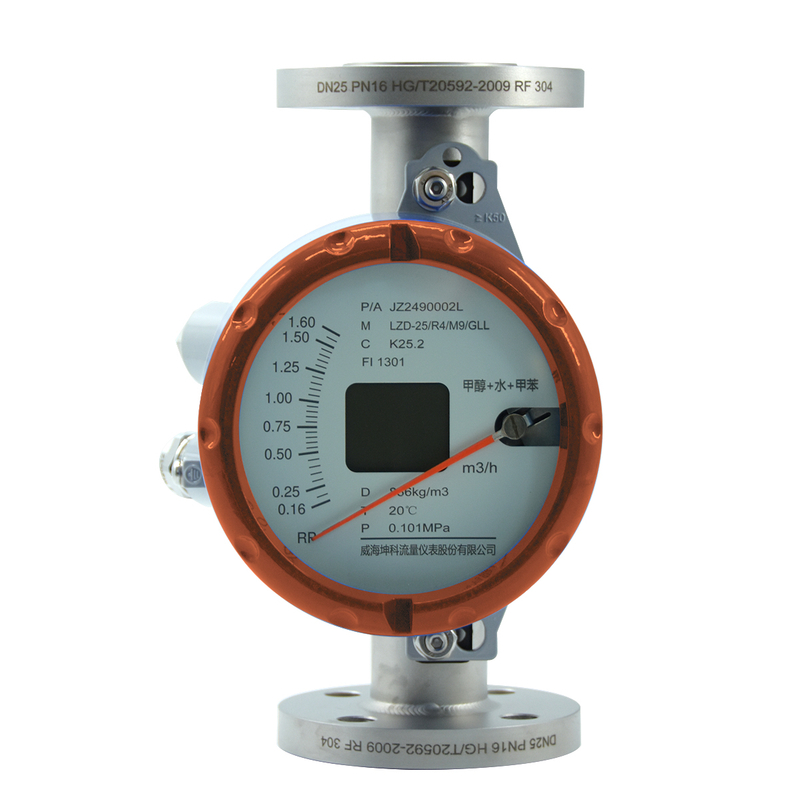

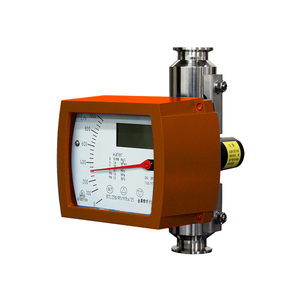

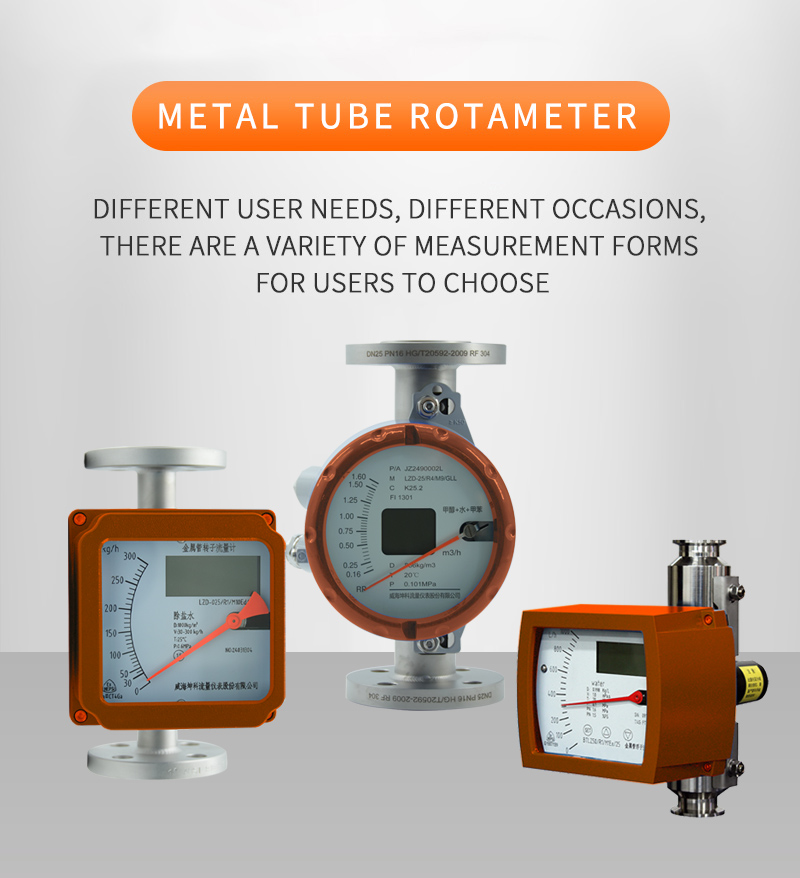

Rotor flowmeter
Intelligent metal rotor flowmeter is a variable area flow meter based on float position measurement. Adopting all-metal structure, with small volume, small pressure loss, large range ratio (10~ 20:1), optional transmitter with HART communication function, easy installation and maintenance, etc., widely used in various industries complex, harsh environment, small flow rate, low flow rate, a variety of harsh medium conditions flow measurement and process control.
Feature
1. Strong all-metal construction design.
2. Suitable for gas and liquid measurement in various industries
3. New case structure design, no additional components can be used in high temperature environment.
4. Flange, clamp, thread and other process connection methods are available, suitable for most factory applications.
5. Specially designed tapered measuring tube has a wider measuring range and better measuring linearity.
6. Measurement part of the material optional: stainless steel, titanium, Hastelloy alloy, PTFE, FEP and other materials.
7. The specially designed magnetic coupling system can obviously improve the accuracy and stability of measurement.
Parameters
Flow range | Water（℃） 16～150000 l/h |
Air（0.1013MPa 20℃） 0.5～4000 m3/h | |
Range ratio | 10:1（Special type 20：1） |
Accuracy class | 2.5（Special type 1.5% or 1.0%) |
Nominal pressure | DN15～DN50 PN16MPa （Special type25MPa） DN80～DN150 PN10MPa （Special type16MPa） Jacket pressure grade: 1.6MPa |
Medium temperature | Standard type -80℃ ~ +220℃ Type high temperature 300 ℃ Lining FEP type ≤85℃ |
Environment temperature | -40℃ ~ +120℃ (no liquid crystal display remote transmission type ≤85℃) (with liquid crystal display remote transmission type ≤70℃) |
Medium viscosity | DN15： ≤5mPa.s ≤30mPa.s) DN25： ≤250mPa.s DN50～DN150：≤300mPa.s |
Liquid Display | Instantaneous flow display value range :0.000 to 99999 The cumulative traffic value ranges from 0.00 to 99999999 |
Output signal | Standard signal: 2-wire 4 ~ 20mA(with HART communication) Standard signal: 3-wire system 0 ~ 10mA 1, one or two relay output (limit 125VAC/0.25A) 2, one or two way proximity switch (switch type according to customer requirements) 3. One or two dry contact switches (two/three wire) Pulse signal output: 0-1KHz isolated output (output level Vpp>4.5V) |
Power supply | Standard: 24 VDC plus or minus 20% Ac type :220VAC(85 ~ 265VAC)(to be customized) Battery type :3.7 Lithium battery, (service cycle 12 ~ 24 months) |
Connection type | Standard: GB, HG, ANSI, JIS and other flange standards Special type: User supplied flange standard Threaded connection type: user specified |
Elec. Conn | · M20×1.5, PG11, 1/2 "NPT or user supplied specifications |
Length | Standard: 250 mm |
IP Grade | IP65/IP67 |
Explosion-proof | Native safety type: ExiaIICT3 ~ 6 Flameproof type: ExdIICT4 ~ 6 |
