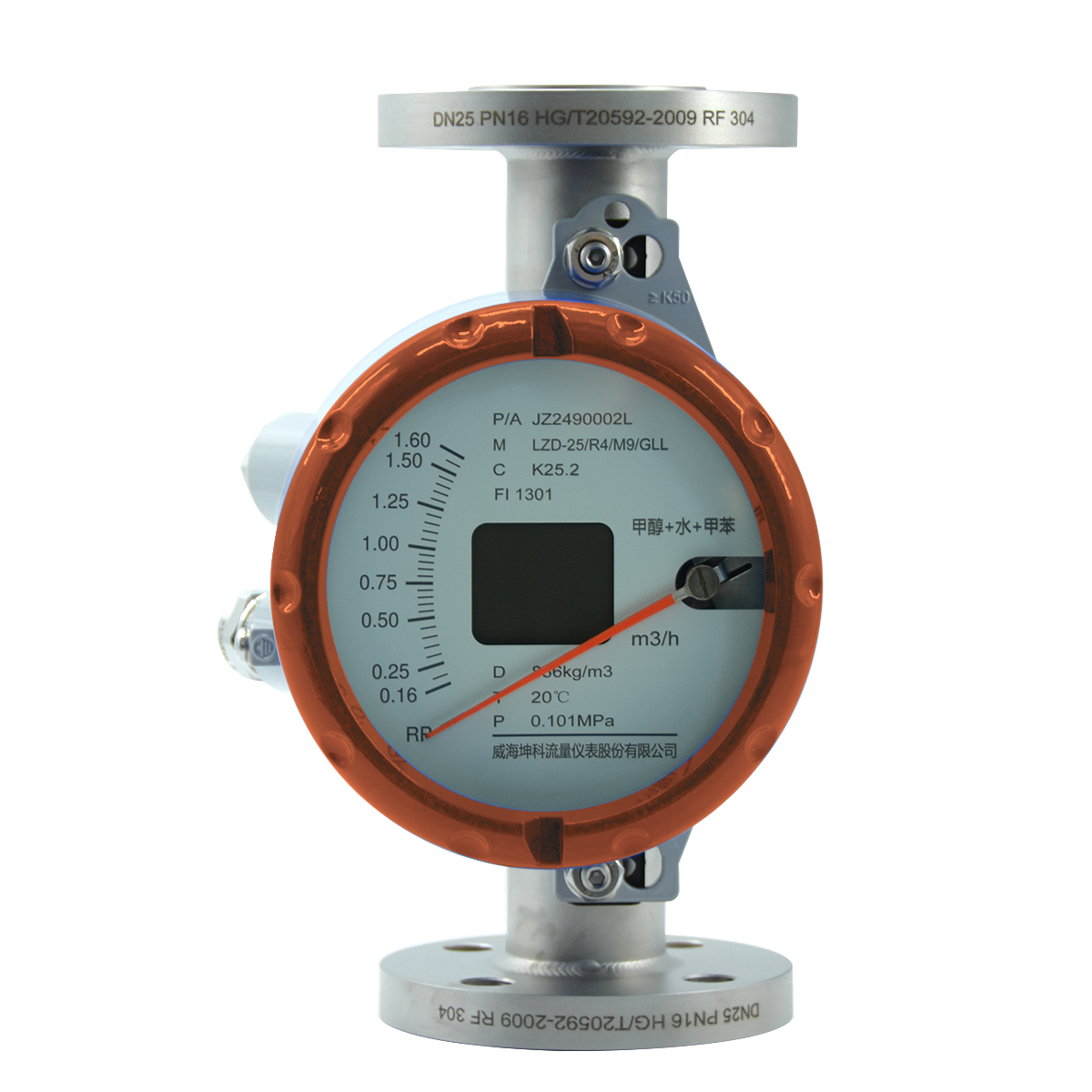

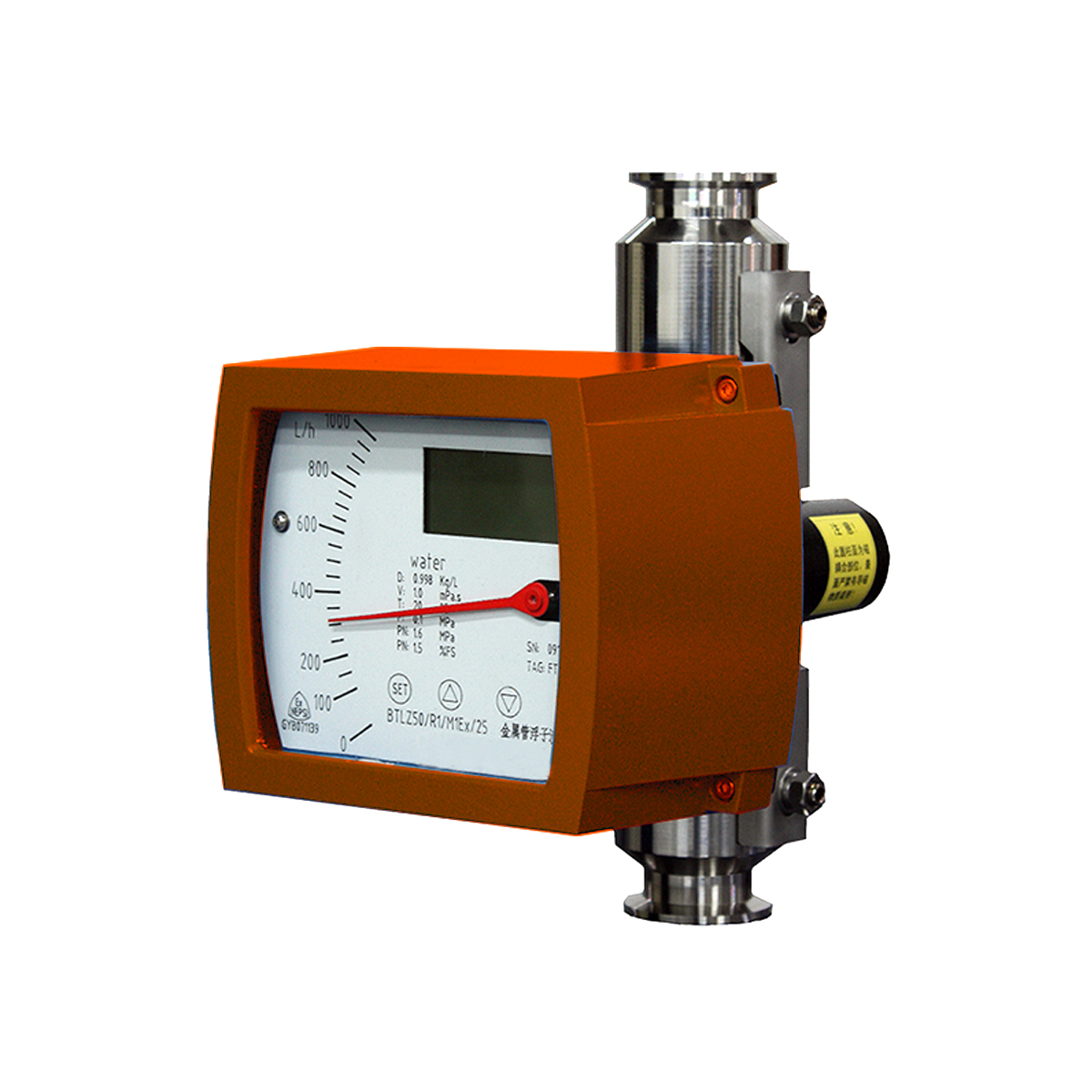

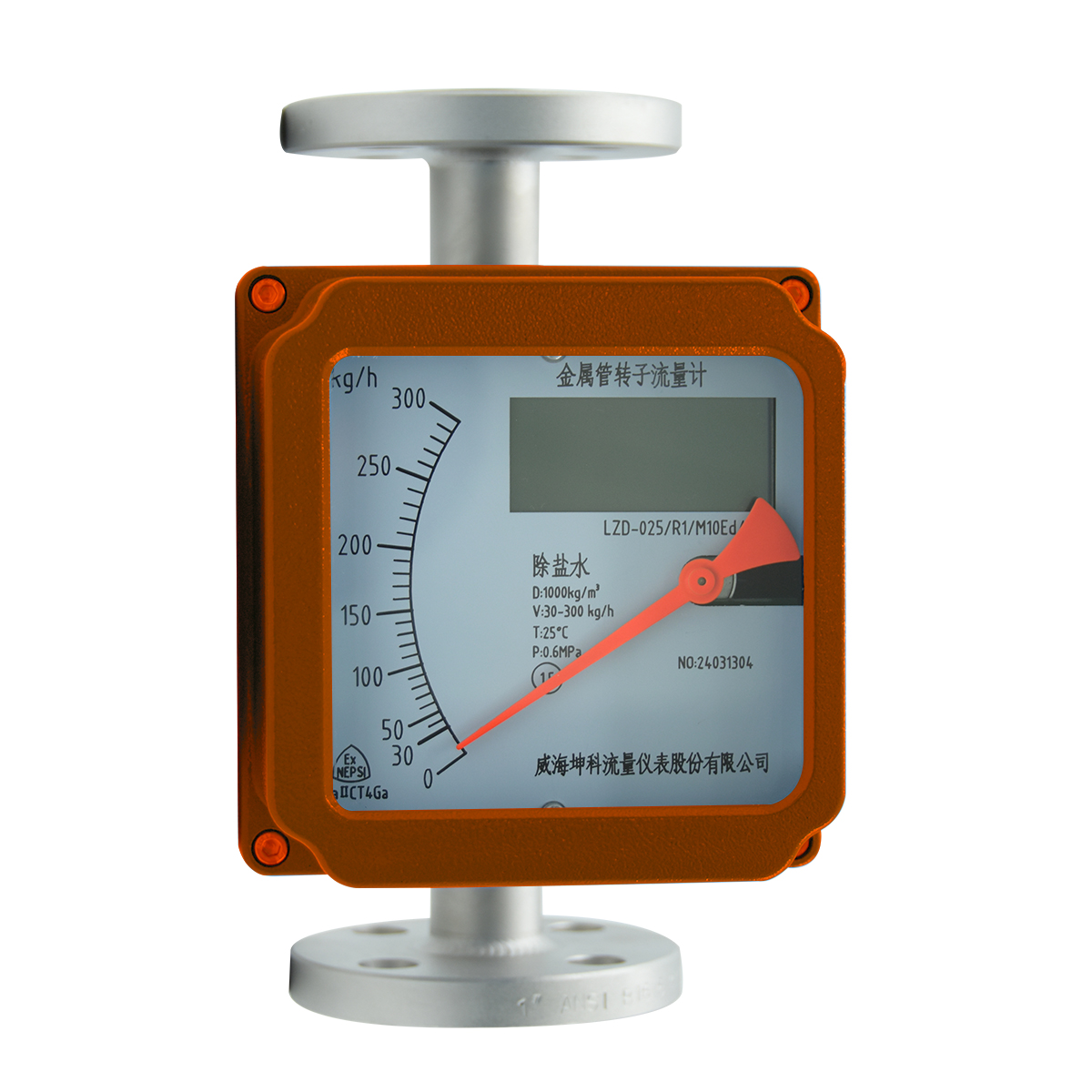

The Pointer Metal Rotameter Can Be Customized for Remote Transmission Using RS485

The BTLZ series of intelligent metal tube rotor flow meters has a variety of measurement modes for users to choose from according to different user needs and different occasions;according to the output form there are local indication type remote transmission type,and control alarm type.;According to the requirements of explosion-proof classification, it can be
divided into three types:ordinary type intrinsically safe type and isolated explosion-proof type
BTLZ series intelligent metal tube rotor flow meter adopts Honey well non-contact and non-hysteresis magnetic sensor for detecting changes in magnetic field angle and is equipped with high-performance MCU which can realize liquid crystal display instantaneous flow rate.cumulative amount,loop current ,ambient temperature,Damping time small signal removal
amount.Optional4-20mAremote transmission(with HART communication)pulse output upper and lower limit alarm output and other functions.This type of intelligent signal transmitter has high accuracy and reliability,and can replace imported instruments of the same type.Features such as high cost performance,online parameter calibration and power failure protection.The design and manufacture of BTLZ series intelligent metal tube rotor flow meter also con-siders the user’s process flow requirements.There are bottom-in and top-out installation types top-in and bottom-out installation typesside-in-side-outinstallationtypesbottom-in-side-out installation types,and horizontal installations.Types and other installation methods are optional.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Intelligent metal tube rotameter according to different user needs and different occasions, there are a variety of measurement methods for users to choose; According to the output form, there are local indication type, remote transmission type, control alarm type; Classified according to explosion-proof requirements, can be classified according to explosion-proof requirements

It is divided into three types: ordinary intrinsically safe type and isolated explosion-proof type.

The smart metal tube rotameter uses Honey well non-contact hysteresis free magnetic sensor to detect magnetic field Angle changes, and is equipped with a high-performance single chip computer to realize liquid crystal display instantaneous flow. Cumulative amount, loop current, ambient temperature, damping time, small signal removal amount. Optional 4-20ma remote transmission (with HART communication) pulse output alarm output and other functions. This type of intelligent signal transmitter has high precision and high reliability, and can replace imported similar instruments. It has the characteristics of high cost performance, online parameter calibration, power off protection, etc. The design and manufacture of BTLZ series intelligent metal tube rotameters also take into account the user's process requirements. Installation methods: top in and top out, top in and bottom out, side in, side out, side in, side out, horizontal. Type and other installation modes are optional.
