KLY SERIES
KUNKE ANDAO

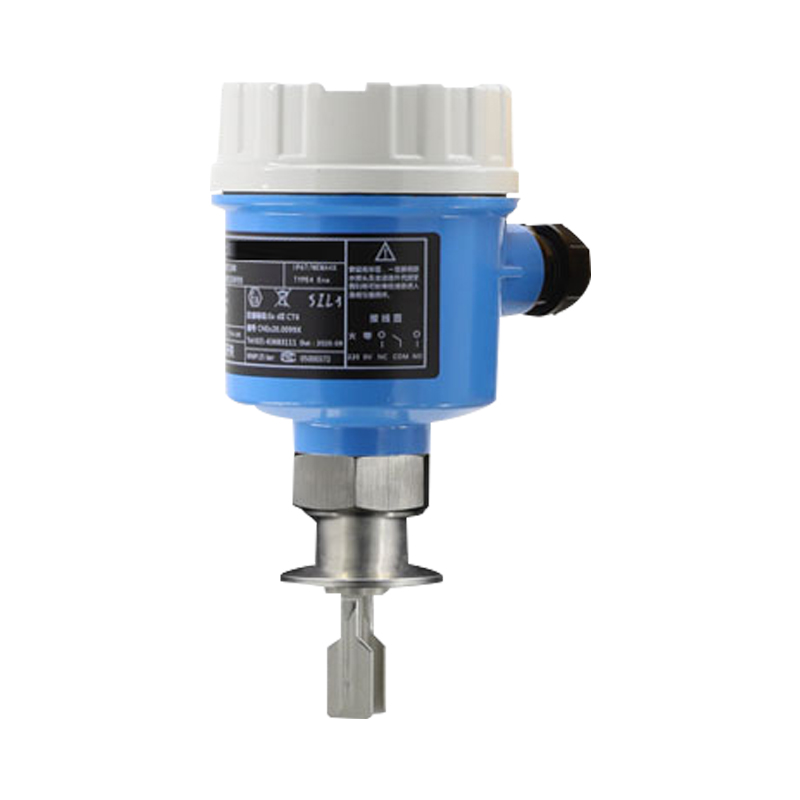

series tuning fork level switch uses the signal of the electronic circuit to excite the crystal in the fork body, so that the fork body of the tuning fork vibrates at a fixed frequency. When the fork body is completely submerged by the measured material, the vibration frequency of the fork body occurs. Change, the electronic circuit of the instrument will automatically detect the change and convert it into a switch signal and output by the relay for on-site alarm or remote control; when the material leaves the fork body, the instrument returns to normal working state and continues to detect the change of material level.
| Measured medium | Liquid,powder or granular solid |
| Fork body length: | 40mm-2000mm( customized) |
| Operating temperature: | -10-80ºC (Standard type) ; -10-200ºC(high temperature) |
| Housing material: | 304 or 316L |
| Ambient temperature: | -20~70ºC |
| Working pressure: | ≤2MPa |
| Medium density: | ≥0.7g/cm³(liquid), >0.1g/cm³(solid) |
| Output mode: | Relay output(3A/220VAC) |
| Process connection: | M20*1.5, G1", G3/4" thread connection / flange connection |
