Thermal Gas Mass Flow Meter Gas Small Flow Measurement Compressed Air Wind Natural Gas Inserted Flow Meter

Thermal Gas Mass Flow Meter Gas Small Flow Measurement Compressed Air Wind Natural Gas Inserted Flow Meter

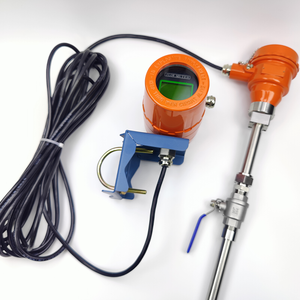

The inserted thermal gas mass flow meter is designed based on the principle of thermal diffusion, which keep the constant temperature difference to accurately measure the gas flow. The model features the advantages of high degree digitization, convenient installation and accurate measurement.

Quantity:
Availability:





Inquire Add to Basket

热式气体质量流量计_01

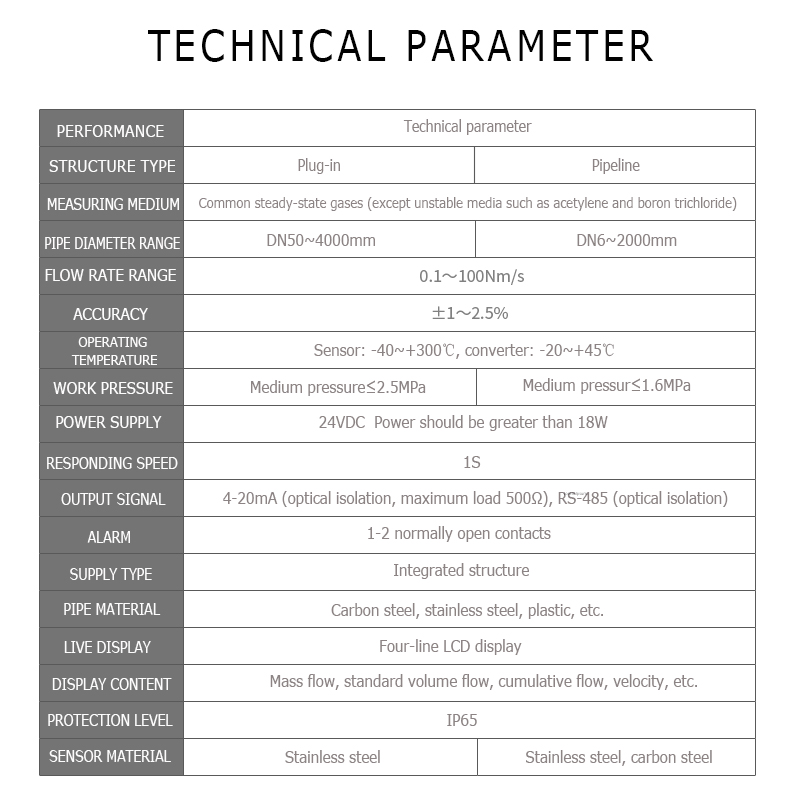

Specification

Description	Specifications
Measuring Medium	Various gases (Except the acetylene)
Pipe Size	DN10~DN4000mm
Velocity	0.1~100 Nm/s
Accuracy	±1.5%
Working Temperature	Sensor: -40℃~+220℃ Transmitter: -20℃~+45℃
Working Pressure	Insertion Sensor: medium pressure≤ 1.6MPa Flanged Sensor: medium pressure≤ 1.6MPa Special pressure please contact us
Power Supply	Compact type: 24VDC or 220VAC, Power consumption ≤18W Remote type: 220VAC, Power consumption ≥19W
Response Time	1s
Output	4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 (optoelectronic isolation) and HART
Alarm Output	1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC

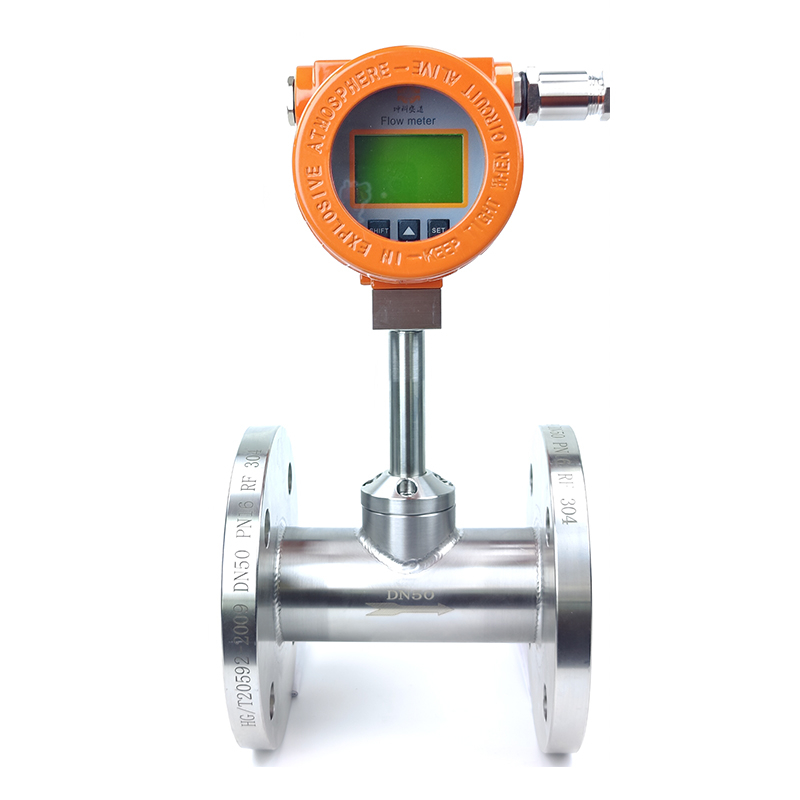

Sensor Type	Standard Insertion, Hot-tapped Insertion and Flanged
Construction	Compact and Remote
Pipe Material	Carbon steel, stainless steel, plastic, etc
Display	4 lines LCD Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc.
Protection Class	IP65
Sensor Housing Material	Stainless steel (316)
