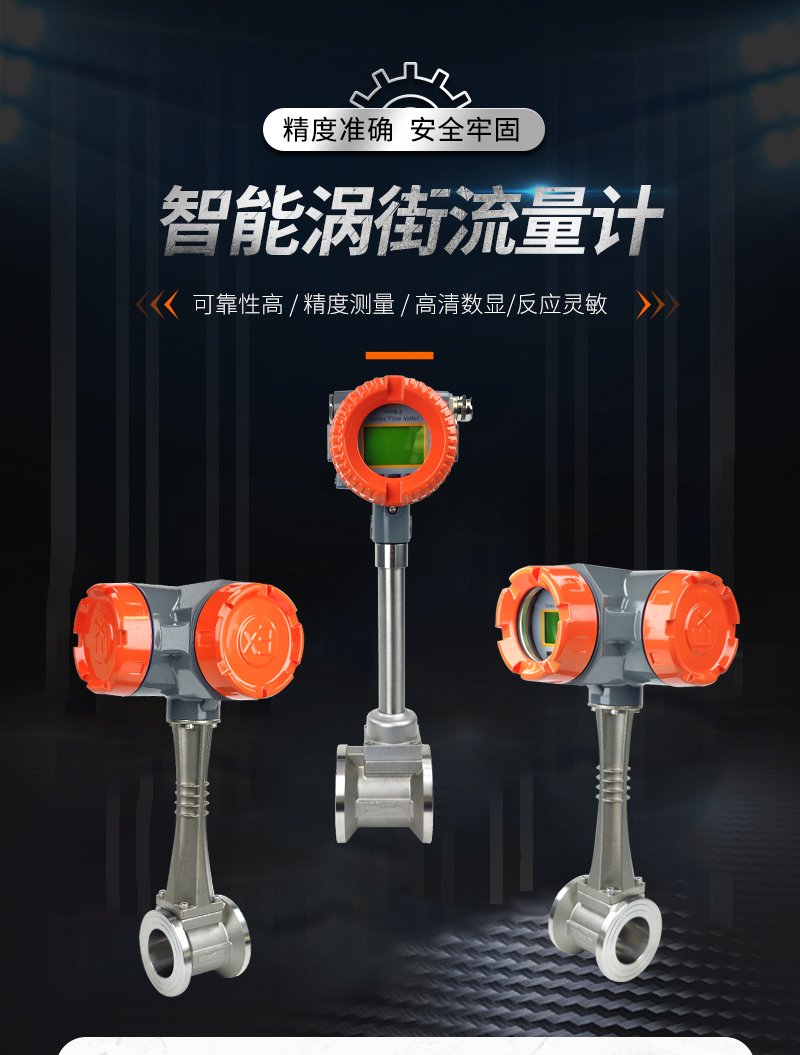

On the basis of Karmen principle, vortex flow meter combines robustness with highest precision, manifold application for which KUNKE flow meters are well-known in the industry.
| Quantity: | |
|---|---|
KLUGB SERIES
KUNKE ANDAO
General Profile
On the basis of Karmen principle, vortex flow meter combines robustness with highest precision, manifold application for which KUNKE flow meters are well-known in the industry.
Highlights
1)No moving parts, high reliability
2)Wide range ratio 1:40
3)Low pressure loss
4)Vibration resistance and high temperature resistance
5)Suitable for pipe size DN15~DN300
6) “L” shape head is available for easy assembly
| Executive standard | 《JB/T9249-2015》 Vortex flow meter |
| Nominal diameter (mm) | 15、20、25，32，40，50，65，80，100，125，150，200，250，300，(300～1000 plug-in) |
| Nominal Pressure (MPa) | DN15-DN200 4.0(>4.0 Supply agreement)，DN250-DN300 1.6(>1.6Supply agreement) |
| Using Conditions | Operational temperature： Std：-40～100℃，KST-M：-40～250℃， KST-HC：-40～330℃；-40～400℃(special tailor-made) Environmental trmperature：-20℃～55℃，Relative humidity：5%～90%， |
| Material | Body：304(Other materials are supplied by agreement) Integrator housing：aluminium die casting |
| Allowable vibration acceleration | piezoelectric type:0.2g |
| Accuracy | ±1%R，±1.5%R；Plug-in：±2.5%R， |
| Rangeability | 1：6～1：30 |
| Supply voltage | sensor：DC +24V；transducer：DC +24V；battery-powered：3.6Vbattery |
| Output signal | Pluse output；4～20mA current, RS485(modbus- RTU agreement)，Internet of Things GPRS and so on |
| Pressure loss factor | JB/T9249 standard Cd≤2.4 |
| Explosive-proof | The Ann model: Ex ia Ⅱ CT4 |
| IP Grade | IP65 |
| Counduit entry | Inside threadM20*1.5or other |
| Applicable medium | Gas,liquids ,steam |
| Transmission distance | Three-wire pulse output：≤300m，Two-wire standard current output (4～20mA) ≤1500m；load resistance≤500Ω； RS485≤1200m. |
Application
Vortex flow meter covers a broad range of applications, measurement and control of overheated steam, saturated steam, compressed air and general gas (oxygen, Nitrogen, Hydrogen, natural gas, cooking gas, water and liquid (gasoline, alcohol, benzene,etc) .
