Founded in 2010, WEIHAI KUNKE FLOW INSTRUMENT is a high-tech company specialize in flow instrument R&D, production, sales and services of instruments. With advanced inspection instruments and equipment, professional talent team, perfect scientific management control system, WEIHAI KUNKE has been distinguished as a leading role in industry. We introduced advanced manufacturing technology from United States. We own a series of automation instruments with independent intellectual property rights and advanced domestic automation instruments. Company has successively obtained International Quality System Certification of ISO 9001-2015, Environmental Management System Certification of ISO14001-2015, Measurement Management System Certification of ISO10012-2003 and OHSAS18001-2007 Occupational Health and Safety Management System Certification.

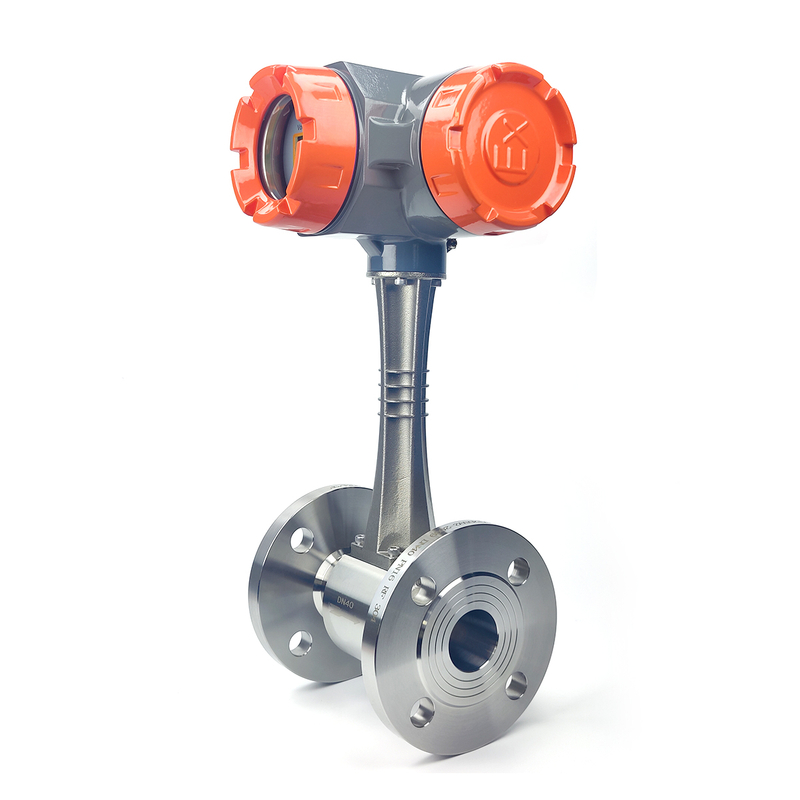

| Executive standard | 《JB/T9249-2015》 Vortex flow meter |
| Nominal diameter (mm) | 15、20、25，32，40，50，65，80，100，125，150，200，250，300，(300～1000 plug-in) |
| Nominal Pressure (MPa) | DN15-DN200 4.0(>4.0 Supply agreement)，DN250-DN300 1.6(>1.6Supply agreement) |
| Using Conditions | Operational temperature： Std：-40～100℃，KST-M：-40～250℃， KST-HC：-40～330℃；-40～400℃(special tailor-made) Environmental trmperature：-20℃～55℃，Relative humidity：5%～90%， |
| Material | Body：304(Other materials are supplied by agreement) Integrator housing：aluminium die casting |
| Allowable vibration acceleration | piezoelectric type:0.2g |
| Accuracy | ±1%R，±1.5%R；Plug-in：±2.5%R， |
| Rangeability | 1：6～1：30 |
| Supply voltage | sensor：DC +24V；transducer：DC +24V；battery-powered：3.6Vbattery |
| Output signal | Pluse output；4～20mA current, RS485(modbus- RTU agreement)，Internet of Things GPRS and so on |
| Pressure loss factor | JB/T9249 standard Cd≤2.4 |
| Explosive-proof | The Ann model: Ex ia Ⅱ CT4 |
| IP Grade | IP65 |
| Counduit entry | Inside threadM20*1.5or other |
| Applicable medium | Gas,liquids ,steam |
| Transmission distance | Three-wire pulse output：≤300m，Two-wire standard current output (4～20mA) ≤1500m；load resistance≤500Ω； RS485≤1200m. |
1)No moving parts, high reliability
2) Wide range ratio 1:40
3) Low pressure loss
4) Vibration resistance and high temperature resistance
5) Suitable for DN15 toDN300
6) “L” shape head can be produced for easy assembly
Vortex flow meter covers a broad range of applications, measurement and control of overheated steam, saturated steam, compressed air and general gas( oxygen, Nitrogen, Hydrogen, natural gas, cooking gas, water and liquid (gasoline, alcohol, benzene,etc) .
1. Q: What is the MOQ of your products
A: One piece is ok. We support one piece sample for field test.
2. Q: What are your terms of payment?
A: We support T/T, L/C, Western Union, Paypal.
3. Q: How do you offer price?
A: EXW, FOB, CIF, DDU or DDP are ok.
4. Q: Are you manufacturer or trade company?
A: We are manufacturer, specialize in flow instrument production for 18 years.
5. Q: How are your products packed?
A: Paper cartons, wooden cartons are available for your choice.
