KLC series

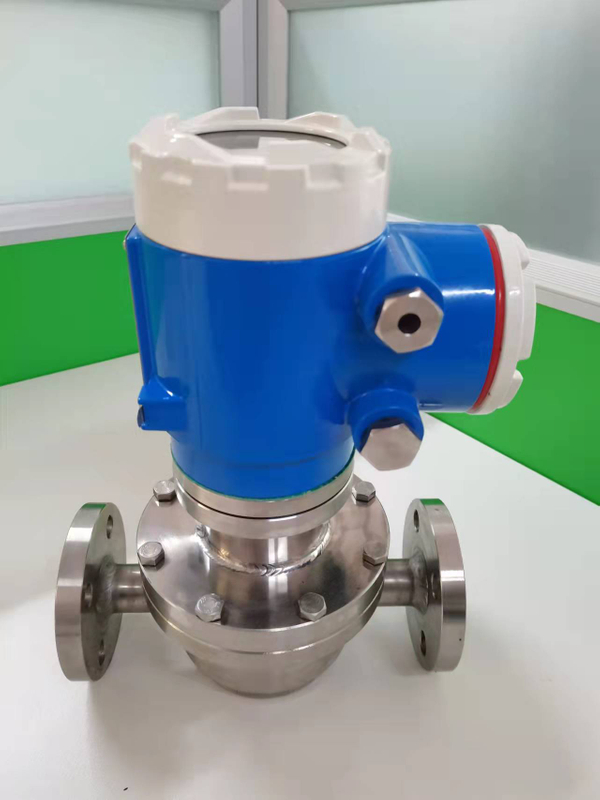

The oval gear flowmeter consists of a metering box and a pair of elliptical gears installed in the metering box, forming a sealed crescent-shaped cavity with the upper and lower cover plates (due to the rotation of the gears, it is not absolutely sealed) as a calculation of primary displacement unit. When the liquid to be measured enters the flowmeter through the pipeline, a pair of gears are driven to rotate continuously due to the pressure difference generated at the inlet and outlet, and the liquid measured by the crescent-shaped cavity is continuously delivered to the outlet. The product of four times the secondary displacement is the total amount of measured liquid flow. The flowmeter is mainly composed of a housing, a counter, an oval gear and a coupling (magnetic coupling and axial coupling), etc.
Model number project | LC-A cast iron | LC-E cast steel | LC-B stainless steel | |||
Nominal pressure/MPa | 1.0 1.6 | 2.5 4.0 6.4 | 1.0 1.6 | |||
Viscosity of the liquid being measured | 2-200mPa.s | |||||
The temperature of the liquid being measured | -20℃~+100℃ | |||||
Flow range m3/h | ||||||
Model number DNmm | LC-A cast iron | LC-E cast steel | LC-B stainless steel | |||
0.5% | 0.2% | 0.5% | 0.2% | 0.5% | 0.2% | |
10 | 0.08~0.4 | 0.1~0.4 | 0.08~0.4 | 0.1~0.4 | 0.1~0.5 | 0.1~0.5 |
15 | 0.25~1.5 | 0.3~1.5 | 0.25~1.5 | 0.3~1.5 | 0.3~1.5 | 0.3~1.5 |
20 | 0.5~3 | 0.6~3 | 0.5~3 | 0.6~3 | 0.6~3 | 0.6~3 |
25 | 1~6 | 1.2~6 | 1~6 | 1.2~6 | 1.2~6 | 1.2~6 |
40 | 2.5~15 | 3~15 | 2.5~15 | 3~15 | 3~15 | 3~15 |
50 | 4~24 | 4.8~24 | 4~24 | 4.8~24 | 4.8~24 | 4.8~24 |
80 | 10~60 | 12~60 | 10~60 | 12~60 | 12~60 | 12~60 |
100 | 16~100 | 20~100 | 16~100 | 20~100 | 20~100 | 20~100 |
150 | 32~190 | 38~190 | 32~190 | 38~190 | 38~190 | 38~190 |
200 | 34~340 | 68~340 | 34~340 | 68~340 | 68~340 | 68~340 |
The oval gear flowmeter consists of a metering box and a pair of elliptical gears installed in the metering box, forming a sealed crescent-shaped cavity with the upper and lower cover plates (due to the rotation of the gears, it is not absolutely sealed) as a calculation of primary displacement unit. When the liquid to be measured enters the flowmeter through the pipeline, a pair of gears are driven to rotate continuously due to the pressure difference generated at the inlet and outlet, and the liquid measured by the crescent-shaped cavity is continuously delivered to the outlet. The product of four times the secondary displacement is the total amount of measured liquid flow. The flowmeter is mainly composed of a housing, a counter, an oval gear and a coupling (magnetic coupling and axial coupling), etc.
Model number project | LC-A cast iron | LC-E cast steel | LC-B stainless steel | |||
Nominal pressure/MPa | 1.0 1.6 | 2.5 4.0 6.4 | 1.0 1.6 | |||
Viscosity of the liquid being measured | 2-200mPa.s | |||||
The temperature of the liquid being measured | -20℃~+100℃ | |||||
Flow range m3/h | ||||||
Model number DNmm | LC-A cast iron | LC-E cast steel | LC-B stainless steel | |||
0.5% | 0.2% | 0.5% | 0.2% | 0.5% | 0.2% | |
10 | 0.08~0.4 | 0.1~0.4 | 0.08~0.4 | 0.1~0.4 | 0.1~0.5 | 0.1~0.5 |
15 | 0.25~1.5 | 0.3~1.5 | 0.25~1.5 | 0.3~1.5 | 0.3~1.5 | 0.3~1.5 |
20 | 0.5~3 | 0.6~3 | 0.5~3 | 0.6~3 | 0.6~3 | 0.6~3 |
25 | 1~6 | 1.2~6 | 1~6 | 1.2~6 | 1.2~6 | 1.2~6 |
40 | 2.5~15 | 3~15 | 2.5~15 | 3~15 | 3~15 | 3~15 |
50 | 4~24 | 4.8~24 | 4~24 | 4.8~24 | 4.8~24 | 4.8~24 |
80 | 10~60 | 12~60 | 10~60 | 12~60 | 12~60 | 12~60 |
100 | 16~100 | 20~100 | 16~100 | 20~100 | 20~100 | 20~100 |
150 | 32~190 | 38~190 | 32~190 | 38~190 | 38~190 | 38~190 |
200 | 34~340 | 68~340 | 34~340 | 68~340 | 68~340 | 68~340 |
