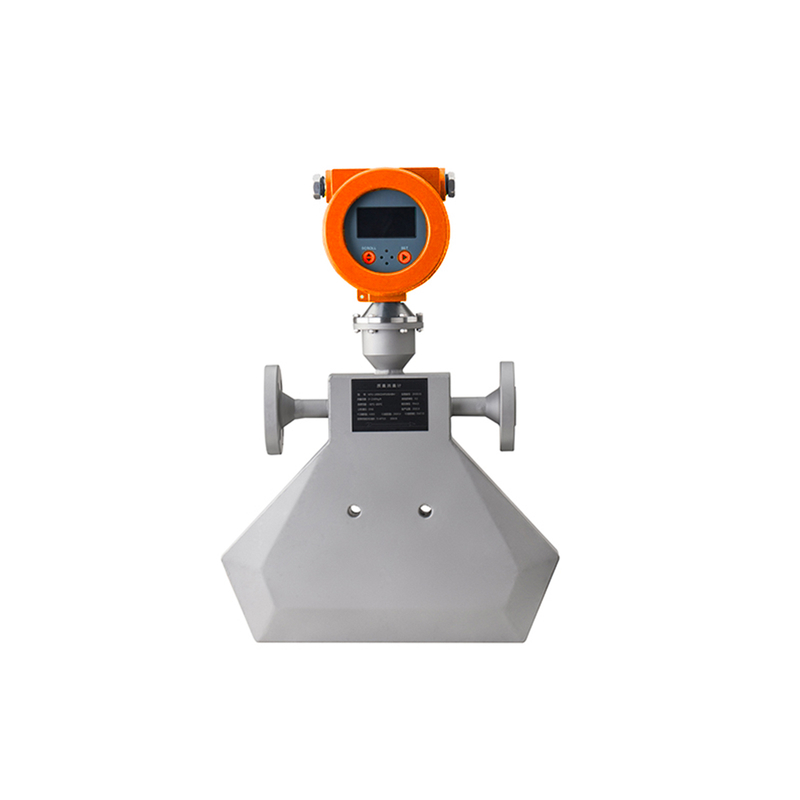

oriolis mass flowmeters are the leading precision flow and density measurement solution offering the mostaccurate and repeatable mass measurement for liquids, or slurries. KK series meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
| Mass flow | Mode | Optional Flange Specification | Rated flow kg/h | Max flow kg/h |
| KK010 | DN5/DN8/DN10/DN15/DN20/DN25 | 96 | 110 | |
| KK015 | DN10/DN15/DN20/DN25 | 270 | 310 | |
| KK025 | DN15/DN20/DN25 | 1000 | 1420 | |
| KK050 | DN15/DN20/DN25 | 3000 | 4200 | |
| KK100 | DN25/DN32 | 15200 | 21600 | |
| KK200 | DN40/DN50/DN65 | 52500 | 75000 | |
| KK300 | DN80/DN100 | 155000 | 220000 | |
| KK350 | DN100/DN125/DN150 | 290000 | 403000 | |
| KK400 | DN150/DN200 | 462000 | 652000 | |
| KK600 | DN200/DN250 | 900000 | 1463000 | |
| KK800 | DN200/DN250/DN300 | 1604000 | 2350000 | |
| KK1200 | DN250/DN300/DN350 | 2380000 | 3266000 |
| Mass flow error | Mass flow repeatability | Volume flow error | |
| 30:1 flow ratio | ±0.1% | ±0.025% | ±0.1% |
| 40:1 flow ratio | ±0.15% |
| Zero point stability Zero point stability | Mode | kg/h |
| KK010 | 0.0024 | |
| KK015 | 0.00675 | |
| KK025 | 0.025 | |
| KK050 | 0.075 | |
| KK100 | 0.38 | |
| KK200 | 1.31 | |
| KK300 | 3.88 | |
| KK350 | 7.83 | |
| KK400 | 21.95 | |
| KK600 | 29.25 | |
| KK800 | 64.16 | |
| KK1200 | 9.25 |
