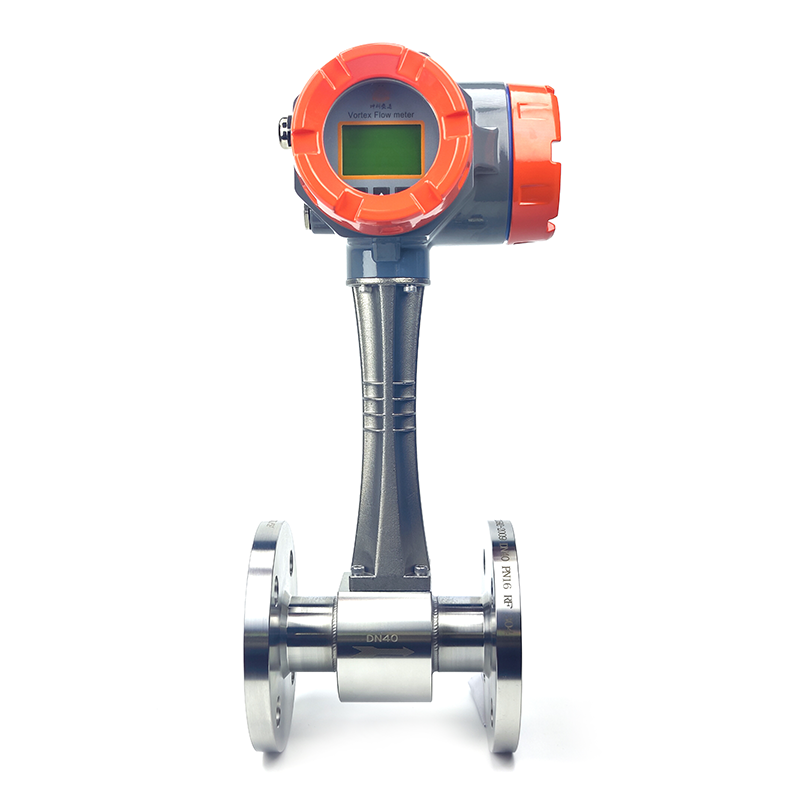

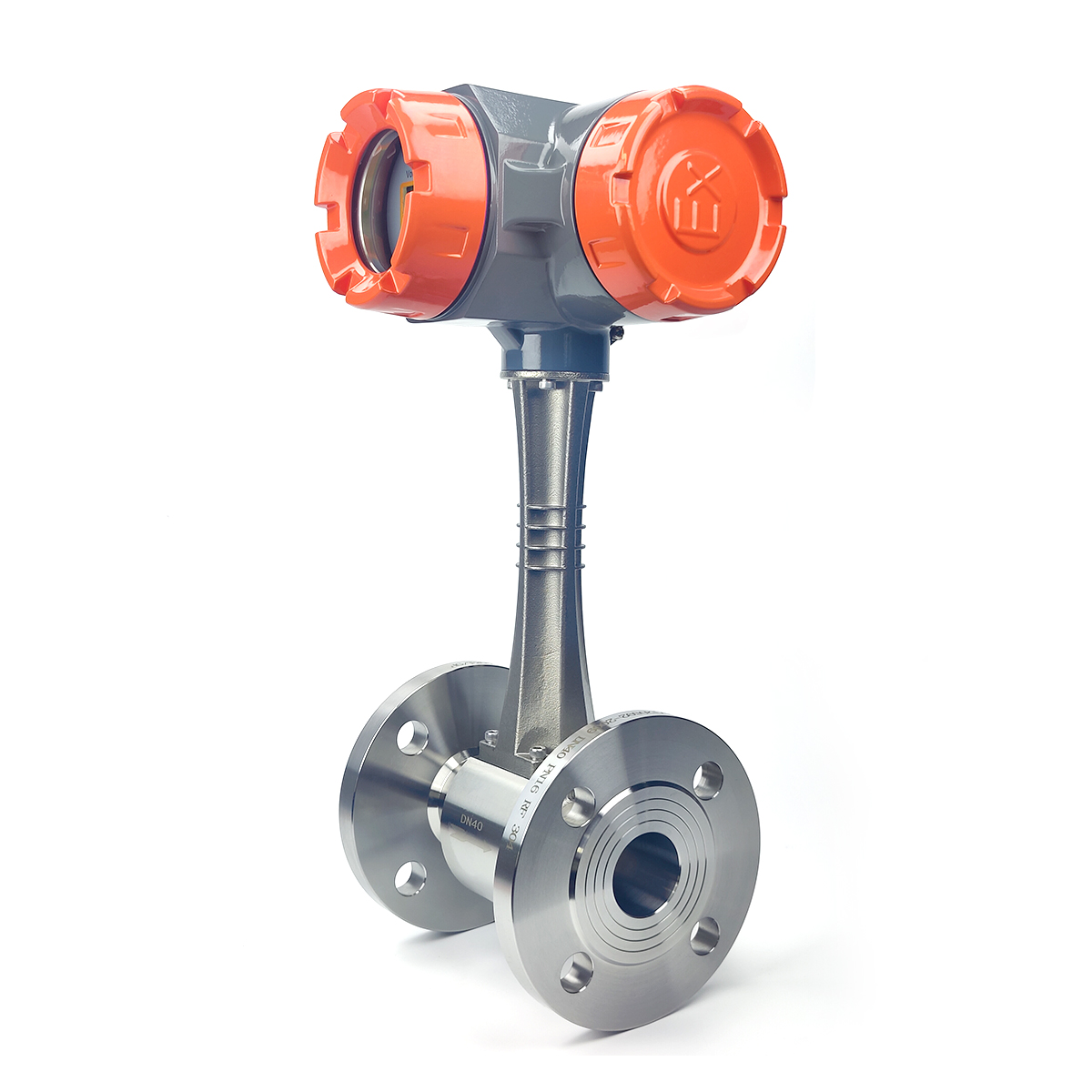

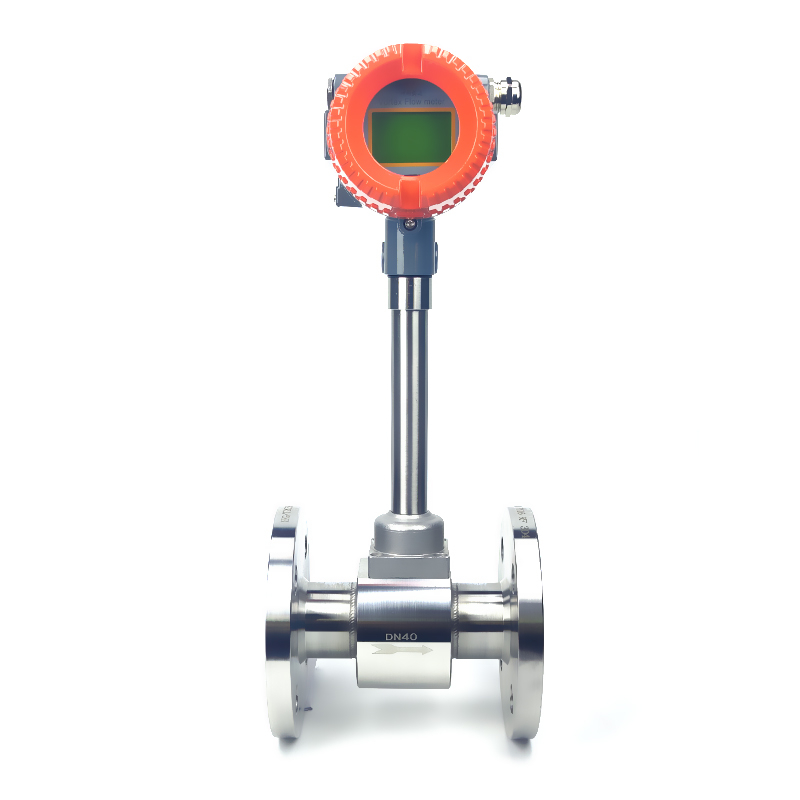

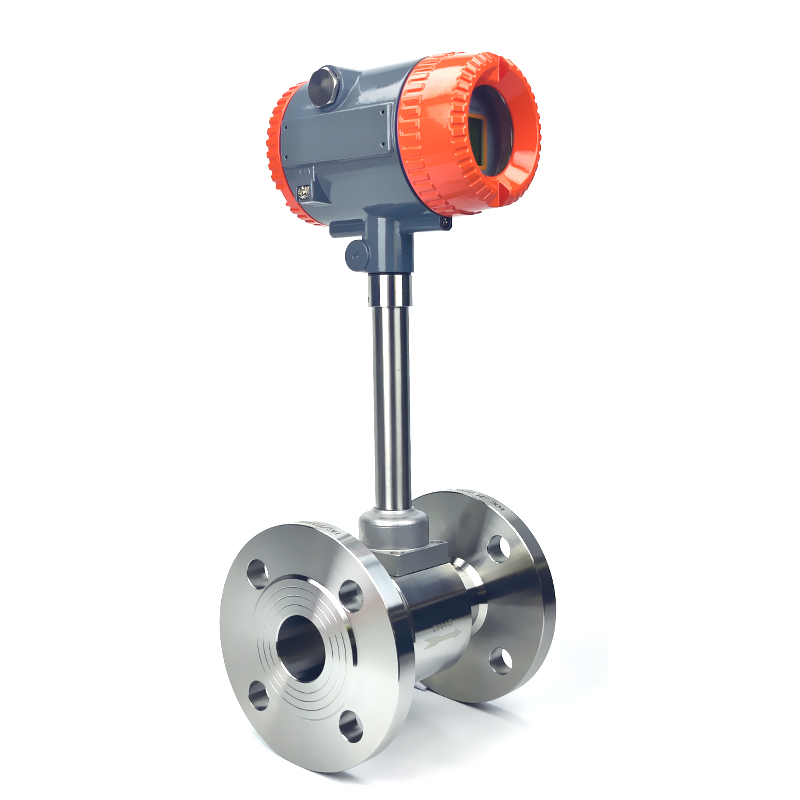

For which applications?
Vortex flowmeters are widely used in various applications because of their reliability and applicability. Here are some common application areas:
1. Industrial process control
In industrial process control, vortex flowmeters are used to monitor the flow of liquids or gases to ensure the stability and consistency of the production process. This includes chemical plants, pharmaceutical plants, food processing plants, etc.
2. Water and wastewater treatment
Vortex flowmeters are widely used in the field of water and wastewater treatment to measure the flow rate during water supply, drainage and treatment. They can help monitor water usage and ensure water quality control.
3. Energy production
In energy production, vortex flowmeters are used to measure the flow of fluids such as gas, oil and steam. This is essential for monitoring energy consumption and optimizing production processes.
4. Environmental monitoring
Vortex flowmeters can also be used for environmental monitoring, such as measuring gas flow in the atmosphere. It plays an important role in meteorology research and environmental protection.
5. Laboratory research
In scientific laboratories, vortex flowmeters can be used to measure the flow of gases and liquids to support research and experiments. Its high accuracy and reliability make it ideal for laboratory measurements.
Executive standard | <JB/T9249-2015 Vortex flow meter> |
Nominal iameter (mm) | 15,20,32,25,40,50,65,80,100,125,150,200,250,300,(300~1000plug-in) |
Nominal Pressure (MPa) | DN15-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6Supply agreement) |
Use condition | Operational temperature: Std:-40~100℃,KST-M:-40~250℃, KST-HC:-40~330℃(Agreement order); Environmental trmperature:-20℃~55℃,Relative humidity:5%~90%,Atmospheric pressure:86~106kPa |
Material | Body:304(Other materials are supplied by agreement) Integrator housing:Die Casting Aluminum. |
Allowable vibration acceleration | piezoelectric type:0.2g |
Accuracy | ±1%R,±1.5%R;Plug-in:±2.5%R, |
Rangeability | 1:6~1:25 |
Supply voltage | sensor:DC +24V;transducer:DC +24V;battery-powered:3.6Vbattery |
Output signal | Pluse output;4~20mA current,RS485(modbus- RTUagreement)and so on |
Pressure loss factor | JB/T9249 standard Cd≤2.4 |
Explosive-proof | The Ann model: Ex ia Ⅱ CT4 |
IP Grade | IP65 |
Counduit entry | Inside threadM20*1.5or other |
Applicable medium | Gas,liquids ,steam |
Transmission distance | Three-wire pulse output:≤300m,Two-wire standard current output (4~20mA) ≤1500m;load resistance≤500Ω; RS485≤1200m. |
